Architectural · A-T78ME

Exterior Detail Storefront Type B Sill at Porch

Materials

Concrete Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Storefronts Floors / Slabs Waterproofing / Flashing Insulation Site / Paving Roof / Floor Openings

About this detail

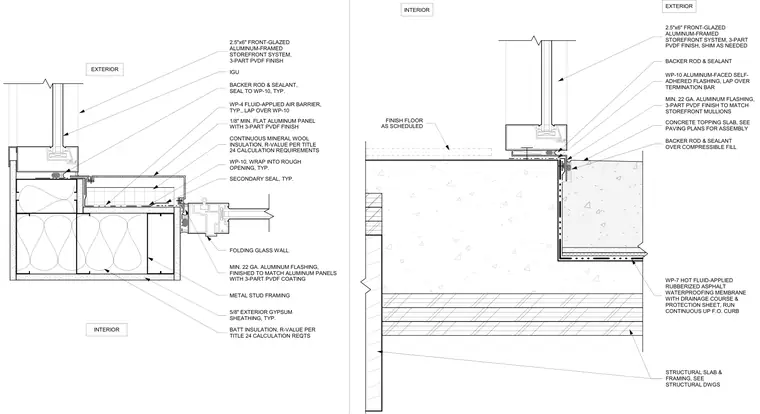

This exterior detail shows a storefront sill assembly set atop a concrete topping slab and structural slab. The 2.5-inch by 6-inch front-glazed aluminum-framed storefront system features insulated glass units and is shimted and sealed with backer rod and sealant. Below the sill, minimum 22-gauge aluminum flashing with a 3-part PVDF finish laps over an aluminum-faced self-adhered flashing, which ties into the fluid-applied air barrier and waterproofing membranes. The adjacent wall construction consists of metal stud framing with 5/8-inch exterior gypsum sheathing, continuous mineral wool insulation, and flat aluminum panels with a PVDF finish.
