Ramp Planter and Handrail Section at Concrete Slab

Materials

Elements

Ramps Railings / Guards Waterproofing / Flashing Drainage Site / Paving

About this detail

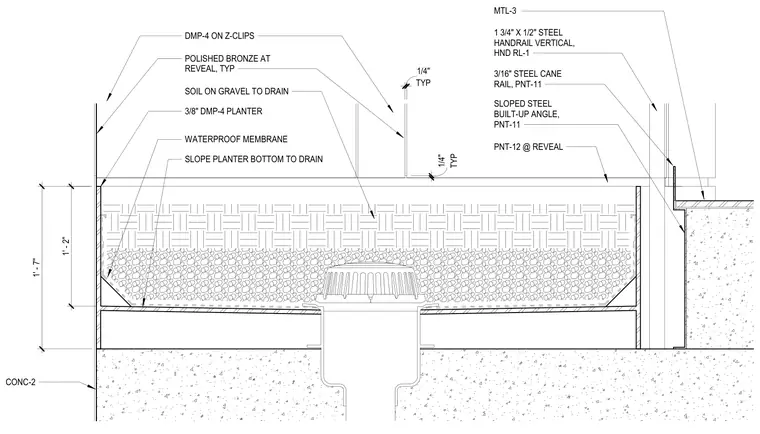

This architectural section details a concrete ramp planter integrated with a drainage system, waterproofing membrane, and steel handrail assembly. The concrete planter base features a sloped bottom draining toward a central floor drain, overlaid with a waterproof membrane, a gravel drainage layer, and soil. The perimeter is finished with DMP-4 panels on Z-clips and polished bronze elements at the reveals. A sloped steel built-up angle supports the edge adjacent to the concrete ramp slab. The steel handrail assembly comprises a 1-3/4 inch by 1/2 inch vertical handrail and a 3/16 inch steel cane rail, finished with specified paints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
