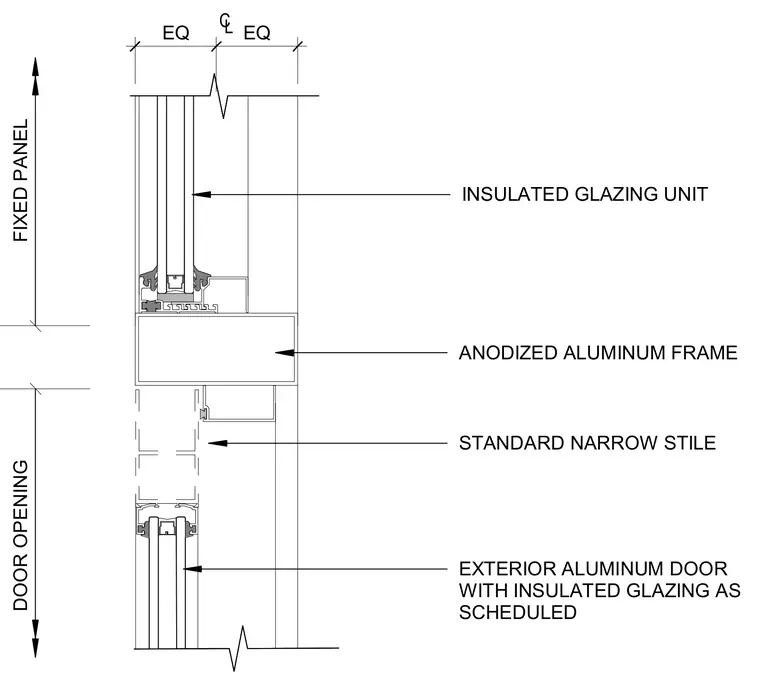

An exterior aluminum storefront head assembly is constructed with an anodized aluminum frame supporting an insulated glazing unit and a standard narrow stile door opening. The fixed panel and door opening are centered around equal dimensions with a vertical centerline. The exterior aluminum door utilizes an insulated glazing unit as scheduled within the storefront frame.
EXTERIOR ALUMINUM DOOR WITH INSULATED GLAZING AS SCHEDULED ANODIZED ALUMINUM FRAME DOOR OPENING FIXED PANEL STANDARD NARROW STILE EQ EQ C L INSULATED GLAZING UNIT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
