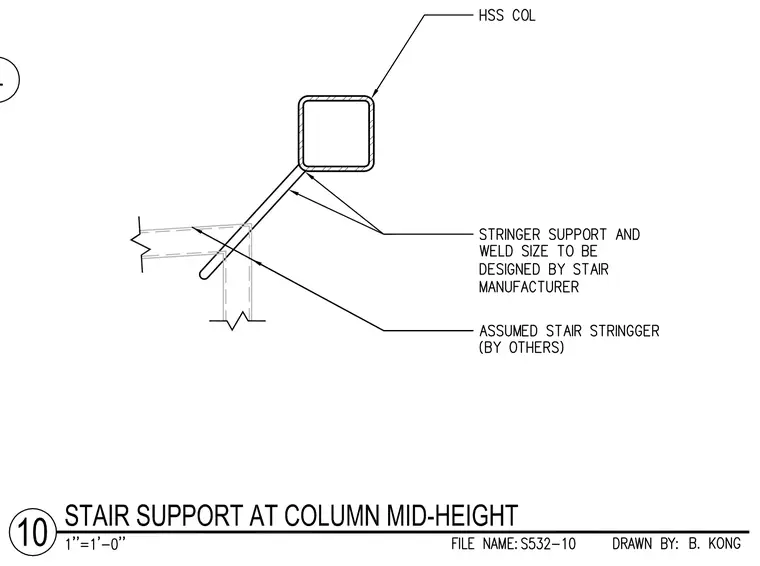

An assumed stair stringer connects to a hollow structural section column via a stringer support with weld sizes designed by the stair manufacturer. The stair stringer is provided by others. The welded connection transfers the stair loads directly into the structural steel column.
