A cast-iron roof drain assembly is set into a premanufactured tapered insulation sump installed over the roofing assembly and metal deck. Compatible sealant is applied between the drain bowl flange and the roof membrane where the clamping ring compresses the assembly. The roof membrane features a round hole cut at the drain that extends at least one inch past the clamping ring and remains larger than the pipe diameter. An air barrier is flashed and sealed directly to the drain body.

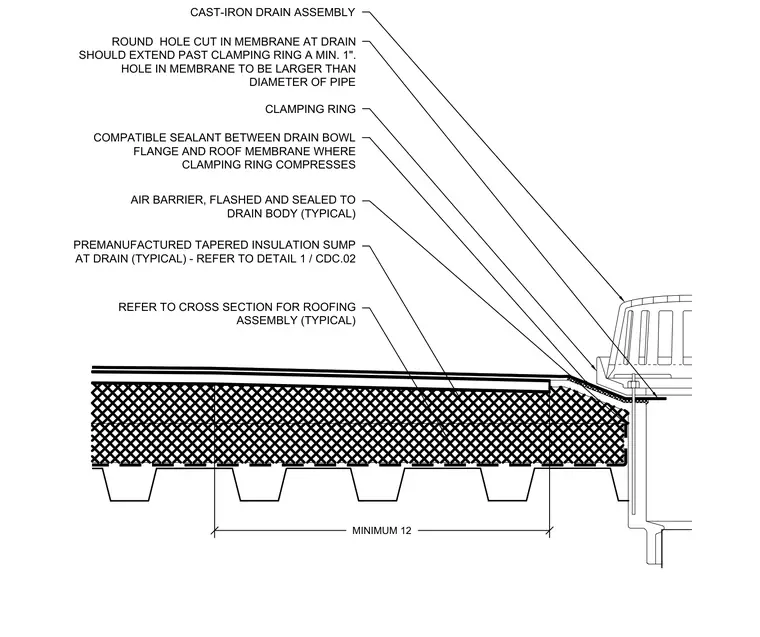

REFER TO CROSS SECTION FOR ROOFING ASSEMBLY (TYPICAL) PREMANUFACTURED TAPERED INSULATION SUMP AT DRAIN (TYPICAL) - REFER TO DETAIL 1 / CDC.02 COMPATIBLE SEALANT BETWEEN DRAIN BOWL FLANGE AND ROOF MEMBRANE WHERE CLAMPING RING COMPRESSES CAST-IRON DRAIN ASSEMBLY CLAMPING RING ROUND HOLE CUT IN MEMBRANE AT DRAIN SHOULD EXTEND PAST CLAMPING RING A MIN. 1". HOLE IN MEMBRANE TO BE LARGER THAN DIAMETER OF PIPE AIR BARRIER, FLASHED AND SEALED TO DRAIN BODY (TYPICAL) MINIMUM 12
