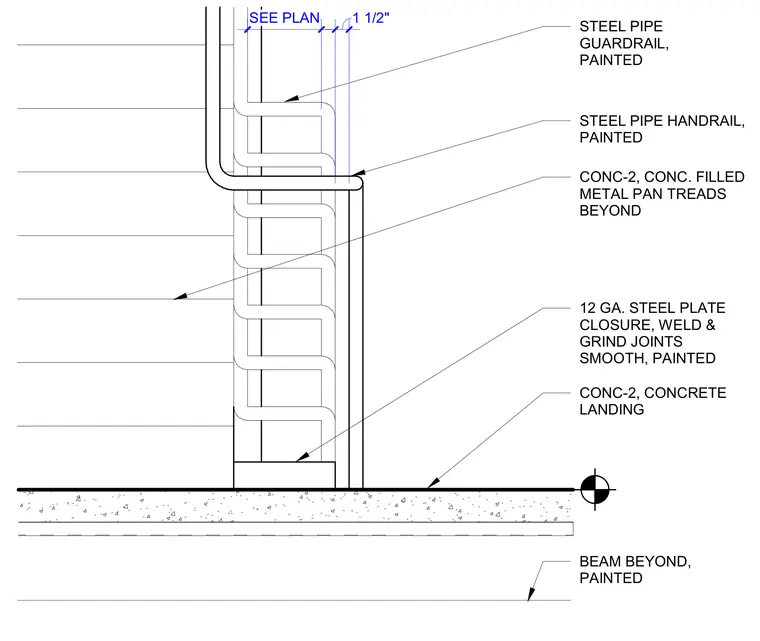

A painted steel pipe guardrail and painted steel pipe handrail terminate at a concrete landing slab over a painted steel beam. The assembly includes a twelve-gauge steel plate closure with welded and ground joints smoothed and painted. Concrete-filled metal pan treads are visible beyond the landing edge. Clearances and dimensions are coordinated per plan.
SEE PLAN STEEL PIPE GUARDRAIL, PAINTED STEEL PIPE HANDRAIL, PAINTED CONC-2, CONC. FILLED METAL PAN TREADS BEYOND 12 GA. STEEL PLATE CLOSURE, WELD & GRIND JOINTS SMOOTH, PAINTED CONC-2, CONCRETE LANDING BEAM BEYOND, PAINTED 1 1/2"
