A steel guardrail assembly at a stair landing anchors to the stair stringer and supporting structural elements. The top rail consists of a two-and-a-half-inch outside diameter steel pipe topped with a half-inch diameter steel rod, supported by a half-inch steel flat bar. A one-and-a-half-inch outside diameter handrail mounts to a plate infill for attachment, positioned at three feet above the finished floor. The vertical posts and infill elements are constructed from one-and-a-half-inch outside diameter steel pipe and flat bars, aligning with the stair stringer above the stair treads.

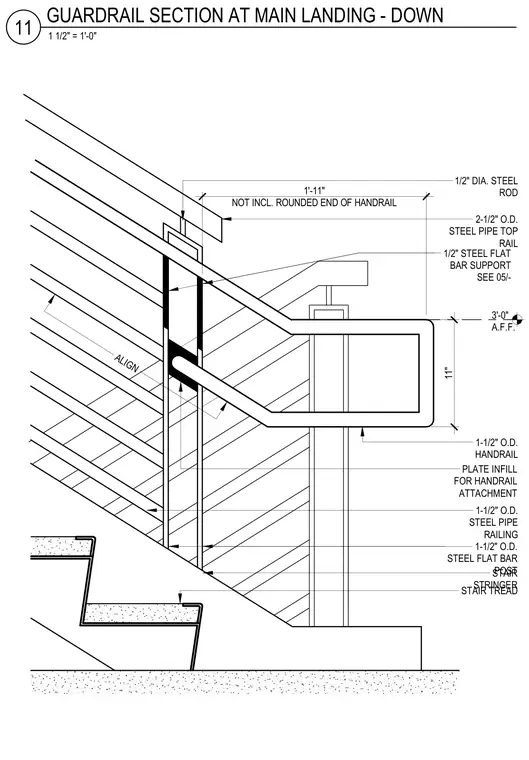

1/2" DIA. STEEL ROD 2-1/2" O.D. STEEL PIPE TOP RAIL 1/2" STEEL FLAT BAR SUPPORT SEE 05/- 1-1/2" O.D. HANDRAIL PLATE INFILL FOR HANDRAIL ATTACHMENT 1-1/2" O.D. STEEL PIPE RAILING 1-1/2" O.D. STEEL FLAT BAR POST STAIR STRINGER STAIR TREAD NOT INCL. ROUNDED END OF HANDRAIL 1'-11" 11" 3'-0" A.F.F. ALIGN 1 1/2" = 1'-0" 11 GUARDRAIL SECTION AT MAIN LANDING - DOWN
