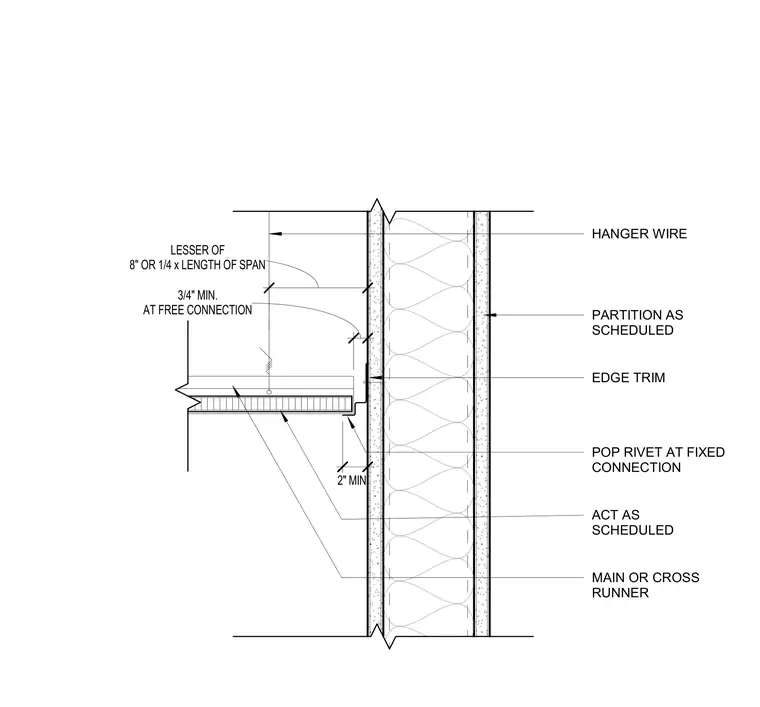

An acoustic ceiling tile system terminates at a scheduled partition wall using an edge trim secured with a pop rivet at the fixed connection. The main or cross runner is supported by hanger wire, maintaining clearances of 3/4 inch minimum at the free connection and a span limitation of the lesser of 8 inches or one-fourth the length of the span. Edge trim connects to the partition as scheduled while framing the acoustic ceiling tile system.
HANGER WIRE PARTITION AS SCHEDULED EDGE TRIM POP RIVET AT FIXED CONNECTION ACT AS SCHEDULED MAIN OR CROSS RUNNER 8" OR 1/4 x LENGTH OF SPAN LESSER OF 3/4" MIN. AT FREE CONNECTION 2" MIN
