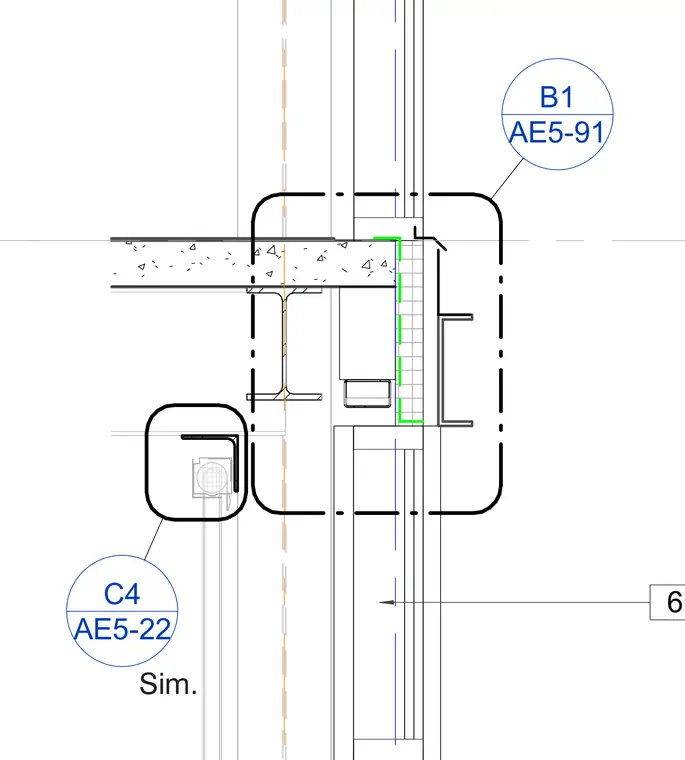

A concrete floor slab bears on a structural steel beam adjacent to an exterior curtain wall assembly. Reference callouts link the junction to sheets AE5-91 and AE5-22 with similar detail conditions.
AE5-91 B1 6 AE5-22 C4 Sim.
