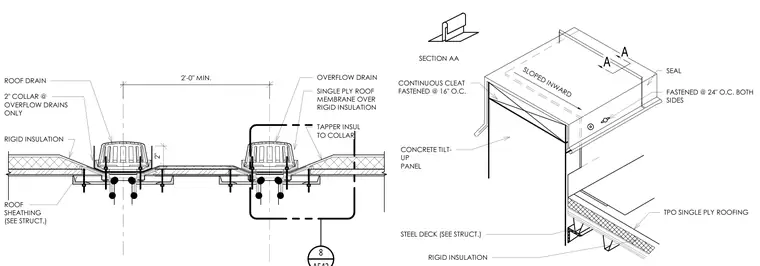

Roof drainage assembly featuring a standard roof drain and an overflow drain set into a concrete tilt-up panel and steel deck construction. Tapered rigid insulation slopes inward toward the drains over roof sheathing and single-ply TPO roof membrane. A two-inch collar is provided at overflow drains only, with continuous cleats fastened at sixteen inches on center.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL 8 2'-0" MIN. 2" OVERFLOW DRAIN TAPPER INSUL TO COLLAR 2" COLLAR @ OVERFLOW DRAINS ONLY ROOF DRAIN RIGID INSULATION SINGLE PLY ROOF MEMBRANE OVER RIGID INSULATION ROOF SHEATHING (SEE STRUCT.)
