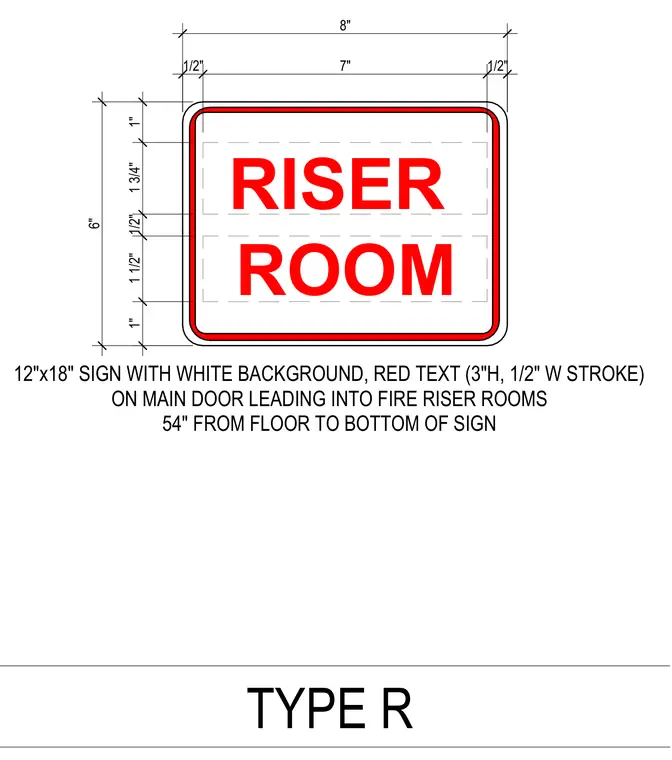

The sign features a white background with red text reading RISER ROOM, with overall dimensions of 12 inches by 18 inches. The text is 3 inches high with a half-inch stroke. The sign is mounted on the main door leading into fire riser rooms, positioned 54 inches from the floor to the bottom of the sign.
12"x18" SIGN WITH WHITE BACKGROUND, RED TEXT (3"H, 1/2" W STROKE) ON MAIN DOOR LEADING INTO FIRE RISER ROOMS 54" FROM FLOOR TO BOTTOM OF SIGN RISER TYPE R 8" 1" 1 3/4" 1/2" 1 1/2" 1" 1/2" 7" 1/2" ROOM 6"
