Architectural · A-T5XCG

Interior Metal Stud Partition Types

Materials

Cold-formed Steel Metal (misc.)Gypsum / Drywall

Elements

About this detail

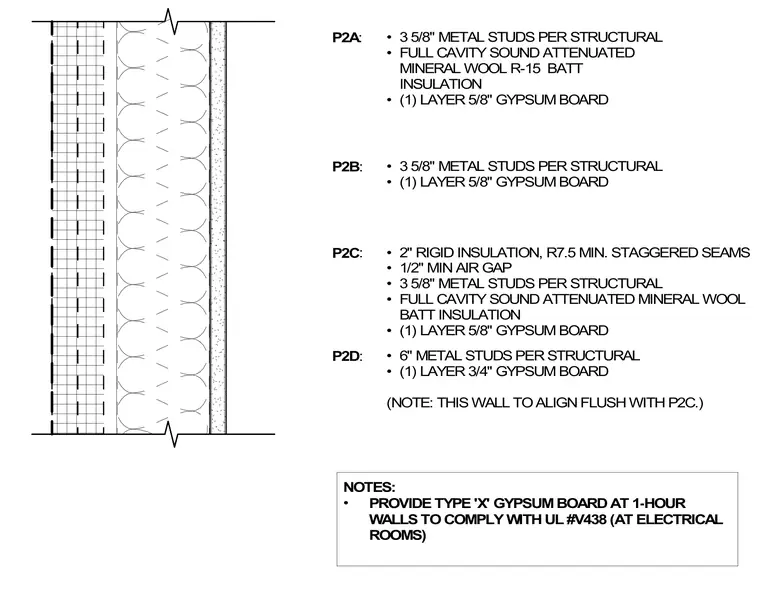

These interior metal stud partition types detail various wall assemblies utilizing cold-formed steel framing sized per structural requirements. Partition type P2A incorporates three-and-five-eighths-inch metal studs, full cavity sound-attenuated mineral wool R-15 batt insulation, and one layer of five-eighths-inch gypsum board, with Type X gypsum board required at one-hour rated walls to comply with UL V438 at electrical rooms. Partition type P2B consists of three-and-five-eighths-inch metal studs with one layer of five-eighths-inch gypsum board. Partition type P2C adds two inches of rigid insulation with a minimum R-7.5 rating and staggered seams, a half-inch minimum air gap, three-and-five-eighths-inch metal studs with full cavity sound-attenuated mineral wool batt insulation, and one layer of five-eighths-inch gypsum board. Partition type P2D utilizes six-inch metal studs with one layer of three-quarters-inch gypsum board, aligned flush with partition type P2C.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
