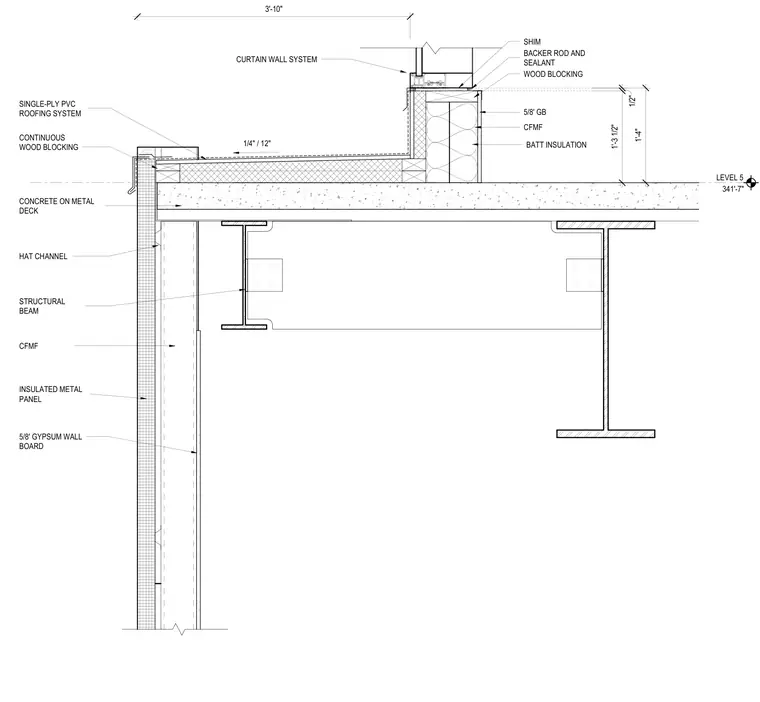

At Level 5, a concrete slab on metal deck is supported by structural steel beams at the roof edge and parapet transition. The roof assembly consists of a single-ply PVC roofing system over continuous wood blocking and insulation sloping at 1/4 inch per 12 inches. The parapet wall utilizes cold-formed metal framing, with an interior facing of five-eighths inch gypsum wall board and exterior insulated metal panels over hat channels. A curtain wall system bears on top of the parapet wall, secured with shims, wood blocking, backer rod, and sealant. The interior ceiling incorporates batt insulation and five-eighths inch gypsum board finish.
LEVEL 5 341'-7" 1/4" / 12" HAT CHANNEL INSULATED METAL PANEL CFMF CONCRETE ON METAL DECK STRUCTURAL BEAM CONTINUOUS WOOD BLOCKING SINGLE-PLY PVC ROOFING SYSTEM 1/2" 1'-3 1/2" 1'-4" CFMF CURTAIN WALL SYSTEM 5/8' GB BATT INSULATION WOOD BLOCKING BACKER ROD AND SEALANT SHIM 5/8' GYPSUM WALL BOARD 3'-10"
