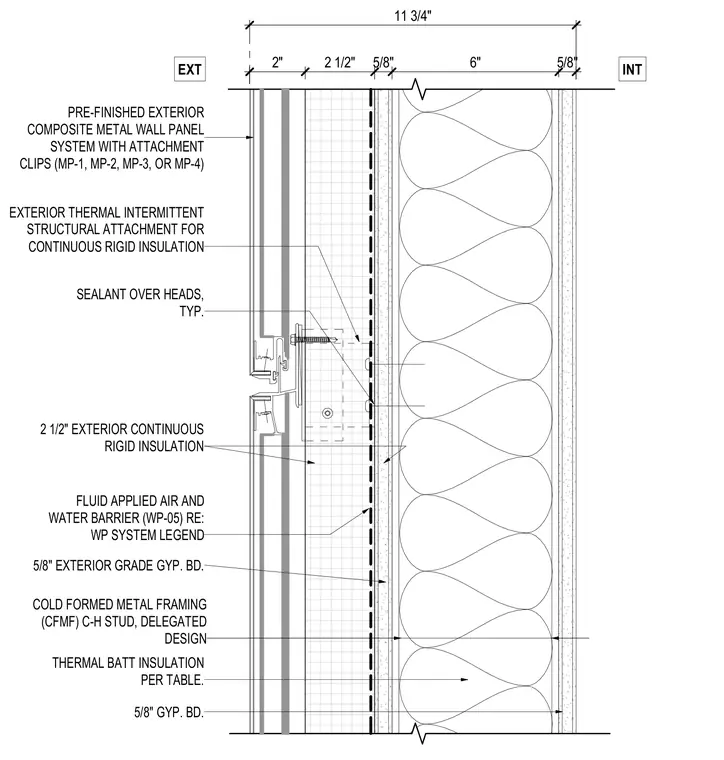

The exterior metal wall assembly consists of a pre-finished composite metal panel system mounted with attachment clips and sealant over fastener heads. A 2 1/2-inch exterior continuous rigid insulation layer sits over a fluid-applied air and water barrier membrane designated as WP-05. Exterior thermal intermittent structural attachments anchor the sub-framing through the insulation layer. The backup wall is constructed from cold-formed metal framing using C-H studs, with 5/8-inch exterior grade gypsum board on the outside and 5/8-inch gypsum board on the interior. Thermal batt insulation fills the interior stud cavity per the engineering table.
PRE-FINISHED EXTERIOR COMPOSITE METAL WALL PANEL SYSTEM WITH ATTACHMENT CLIPS (MP-1, MP-2, MP-3, OR MP-4) 2 1/2" EXTERIOR CONTINUOUS RIGID INSULATION FLUID APPLIED AIR AND WATER BARRIER (WP-05) RE: WP SYSTEM LEGEND EXTERIOR THERMAL INTERMITTENT STRUCTURAL ATTACHMENT FOR CONTINUOUS RIGID INSULATION THERMAL BATT INSULATION PER TABLE. SEALANT OVER HEADS, TYP. COLD FORMED METAL FRAMING (CFMF) C-H STUD, DELEGATED DESIGN 5/8" EXTERIOR GRADE GYP. BD. 5/8" GYP. BD. EXT INT 2" 2 1/2" 5/8" 6" 5/8" 11 3/4"
