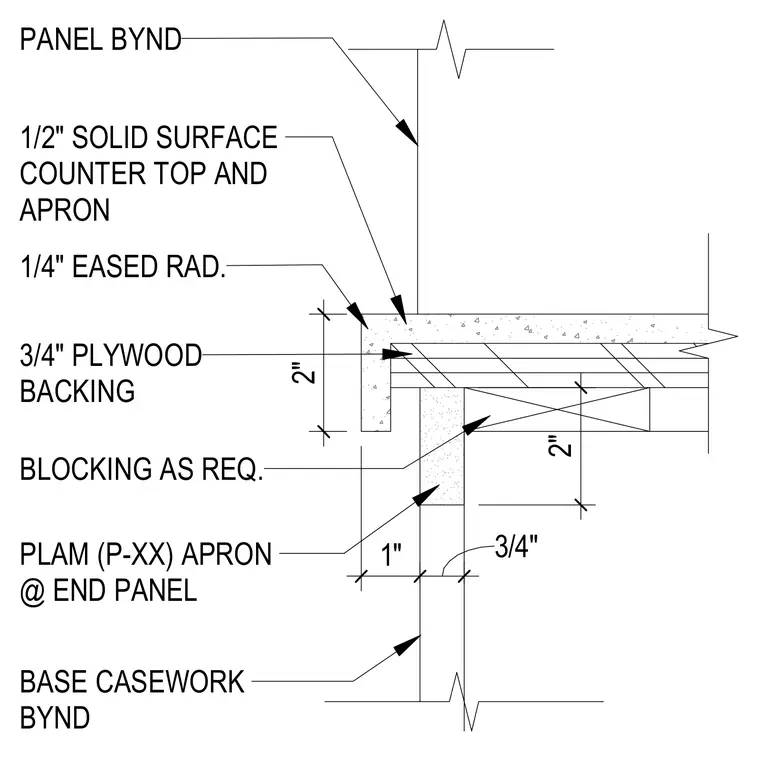

A half-inch solid surface countertop and apron features a quarter-inch eased radius at the outside corner, supported by three-quarter-inch plywood backing. Wood blocking is provided as required above the base casework. A plastic laminate apron is detailed at the end panel.
2" 1" 3/4" 2" PANEL BYND 1/2" SOLID SURFACE COUNTER TOP AND APRON 1/4" EASED RAD. 3/4" PLYWOOD BACKING BLOCKING AS REQ. PLAM (P-XX) APRON @ END PANEL BASE CASEWORK BYND
