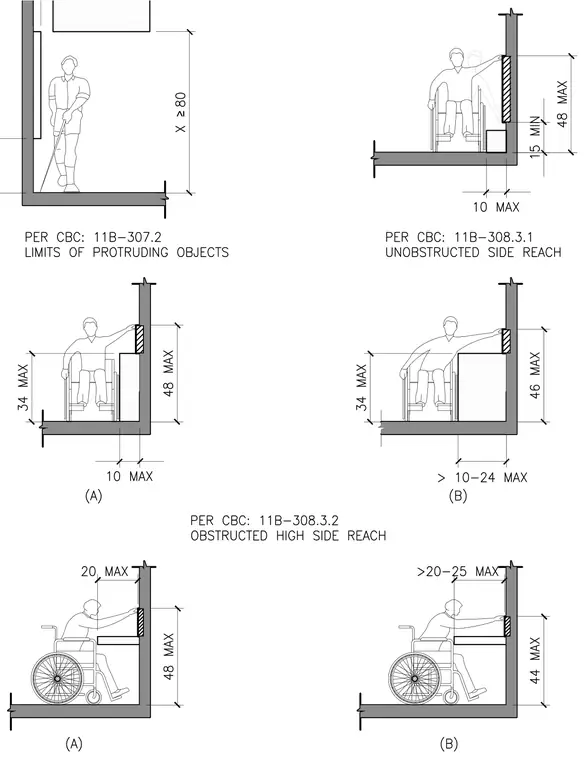

Accessibility diagram illustrating California Building Code requirements for protruding objects, unobstructed side reach, obstructed high side reach, and wheelchair reach ranges. Protruding objects are limited by vertical clearance dimensions. Unobstructed side reach ranges from 15 inches minimum to 48 inches maximum above the finished floor, with a 10 inch maximum depth. Obstructed high side reach dimensions vary based on obstruction depth up to 24 inches maximum, with corresponding reach heights up to 48 inches maximum.
