Upper cabinets are secured to the wall per plan using a 1x4 wood anchor strip fastened with number 10 by 3-inch flat countersunk sheet metal screws with covers spaced at 16 inches on center and 2 inches from corners. The assembly includes a 1/4-inch plywood cabinet backing and a plastic laminate or solid surface countertop with matching splash. Joints at the wall and splash receive sealant, and end wall conditions feature a side splash.

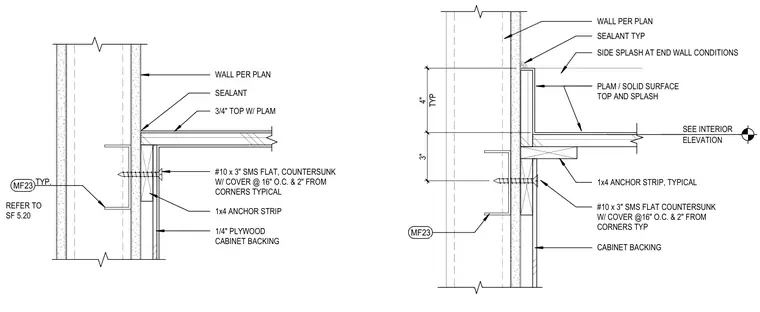

WALL PER PLAN 3/4" TOP W/ PLAM 1/4" PLYWOOD CABINET BACKING #10 x 3" SMS FLAT, COUNTERSUNK W/ COVER @ 16" O.C. & 2" FROM CORNERS TYPICAL 1x4 ANCHOR STRIP SEALANT TYP. MF23 REFER TO SF 5.20 WALL PER PLAN SEALANT TYP SIDE SPLASH AT END WALL CONDITIONS PLAM / SOLID SURFACE TOP AND SPLASH 1x4 ANCHOR STRIP, TYPICAL #10 x 3" SMS FLAT COUNTERSUNK W/ COVER @16" O.C. & 2" FROM CORNERS TYP CABINET BACKING SEE INTERIOR ELEVATION 3" TYP 4" MF23
