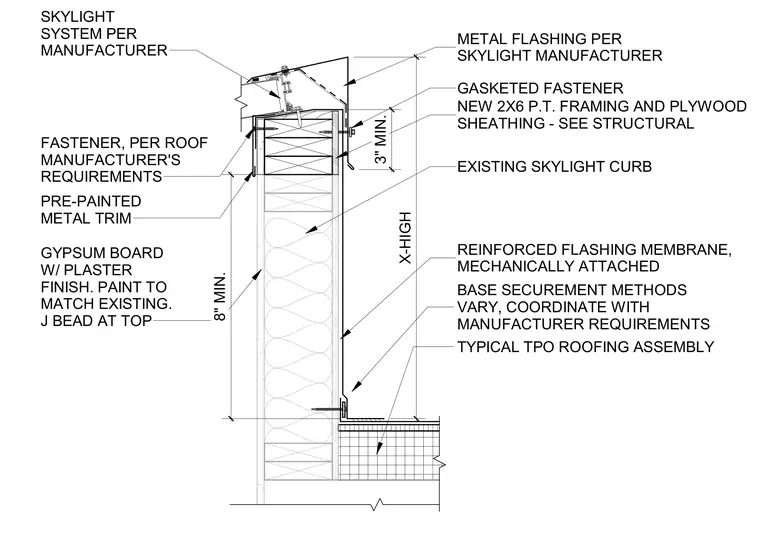

The assembly features a skylight system mounted on a modified high wood curb with new 2x6 pressure-treated framing and plywood sheathing supported by the existing skylight curb. A gasketed fastener secures the skylight system per the manufacturer's requirements, while pre-painted metal trim and mechanically attached reinforced flashing membrane tie into the typical TPO roofing assembly. The interior wall surface finishes with gypsum board, plaster finish, and a J bead at the top.
GYPSUM BOARD W/ PLASTER FINISH. PAINT TO MATCH EXISTING. J BEAD AT TOP NEW 2X6 P.T. FRAMING AND PLYWOOD SHEATHING - SEE STRUCTURAL REINFORCED FLASHING MEMBRANE, MECHANICALLY ATTACHED METAL FLASHING PER SKYLIGHT MANUFACTURER 3" MIN. BASE SECUREMENT METHODS VARY, COORDINATE WITH MANUFACTURER REQUIREMENTS TYPICAL TPO ROOFING ASSEMBLY GASKETED FASTENER SKYLIGHT SYSTEM PER MANUFACTURER 8" MIN. FASTENER, PER ROOF MANUFACTURER'S REQUIREMENTS X-HIGH EXISTING SKYLIGHT CURB PRE-PAINTED METAL TRIM
