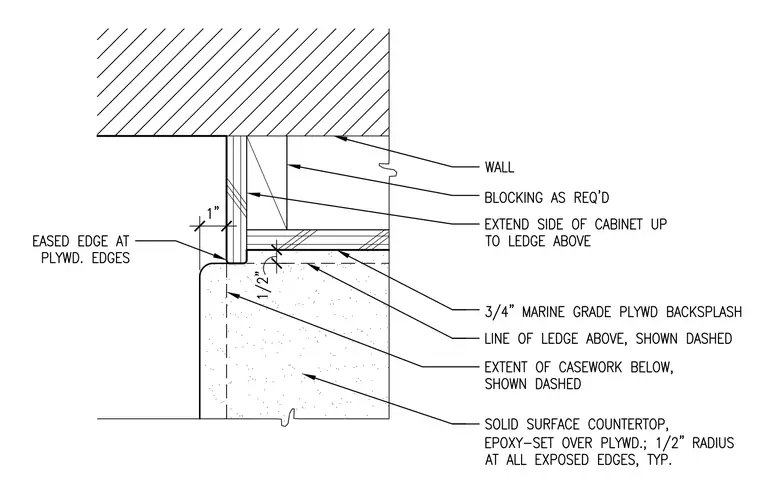

A solid surface countertop is set in epoxy over plywood with a one-half inch radius at all exposed edges, typically. A three-quarter-inch marine grade plywood backsplash extends up to the ledge above, featuring eased edges at plywood edges. Wood blocking is provided as required against the wall, with the side of the cabinet extended up to meet the ledge above.
