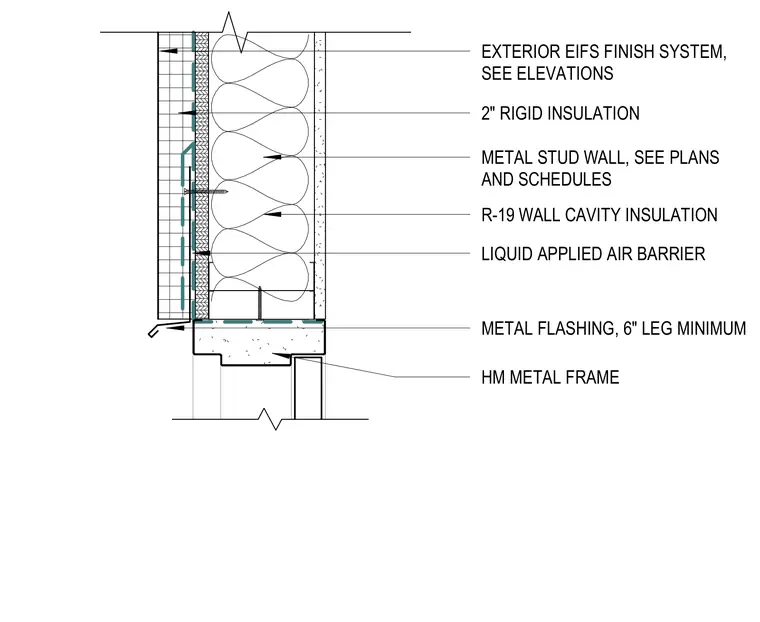

This architectural detail shows a door head junction at an exterior EIFS wall assembly. A hollow metal frame interfaces with a metal stud wall, which is detailed with R-19 wall cavity insulation and two inches of rigid insulation. A liquid-applied air barrier is applied behind the exterior EIFS finish system. Metal flashing with a six-inch leg minimum is installed above the door frame for water management.
EXTERIOR EIFS FINISH SYSTEM, SEE ELEVATIONS METAL STUD WALL, SEE PLANS AND SCHEDULES LIQUID APPLIED AIR BARRIER HM METAL FRAME METAL FLASHING, 6" LEG MINIMUM R-19 WALL CAVITY INSULATION 2" RIGID INSULATION
