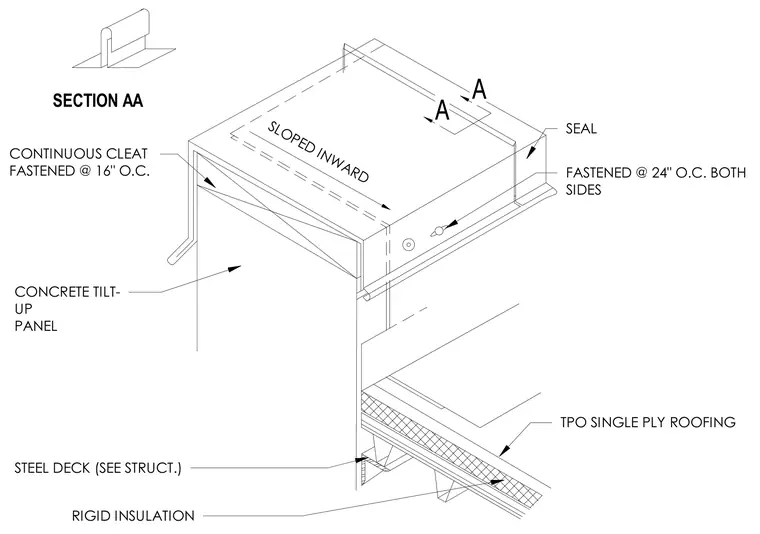

A metal coping cap sloped inward sits atop a concrete tilt-up wall and is secured with a continuous cleat fastened at sixteen inches on center. Tpo single ply roofing membrane runs across the assembly over rigid insulation and a steel deck. Fasteners are spaced at twenty-four inches on center on both sides with applied sealant.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
