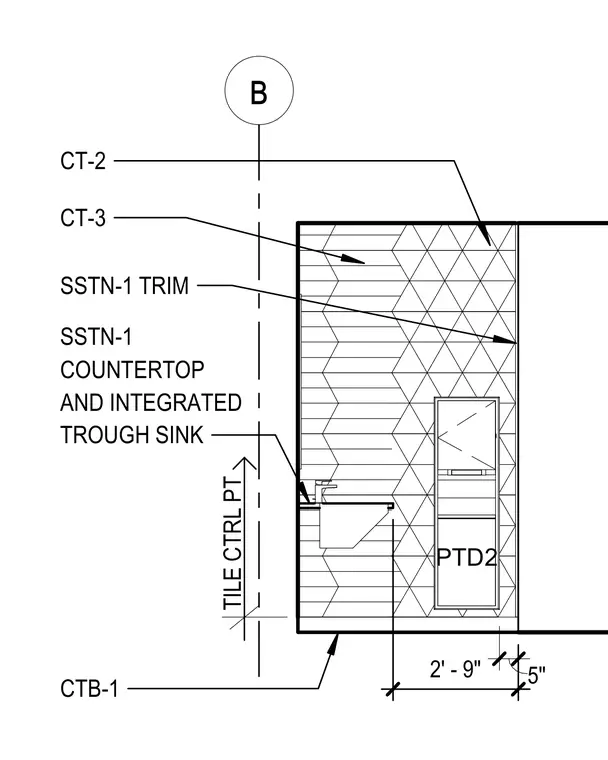

This elevation shows a tiled wall assembly featuring tile types CT-2 and CT-3 with SSTN-1 stainless steel trim. A stainless steel countertop and integrated trough sink are positioned against the wall, with a dimension of two feet nine inches to a vertical reference line. The assembly includes a tile control point layout dimension and base tile CTB-1, alongside a painted partition labeled PTD2.
B CT-2 SSTN-1 COUNTERTOP AND INTEGRATED TROUGH SINK CTB-1 CT-3 SSTN-1 TRIM TILE CTRL PT 2 ' - 9 " PTD2 5 "
