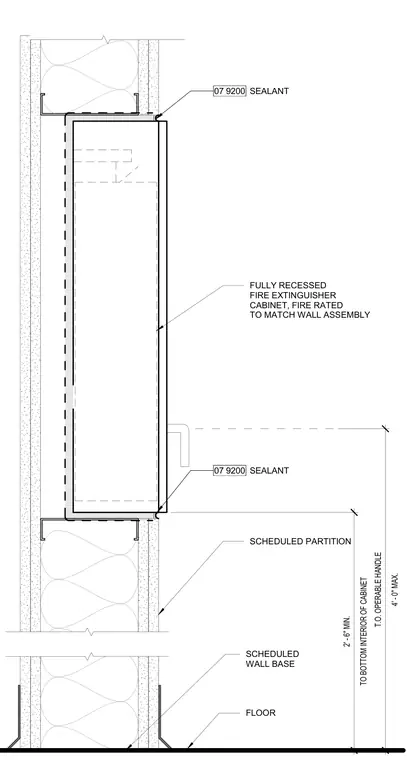

A fully recessed, fire-rated fire extinguisher cabinet is installed within a scheduled partition wall, matching the surrounding fire resistance rating. Sealant is applied along the perimeter joints of the cabinet frame. The operable handle of the cabinet is positioned at a maximum height of four feet above the finished floor, with the interior bottom of the cabinet maintaining a minimum height of two feet six inches. A scheduled wall base is detailed at the junction of the partition and the floor.
07 9200 SEALANT 07 9200 SEALANT FULLY RECESSED FIRE EXTINGUISHER CABINET, FIRE RATED TO MATCH WALL ASSEMBLY SCHEDULED PARTITION 4' - 0" MAX. T.O. OPERABLE HANDLE FLOOR TO BOTTOM INTERIOR OF CABINET 2' - 6" MIN. SCHEDULED WALL BASE
