Architectural · A-T32VP

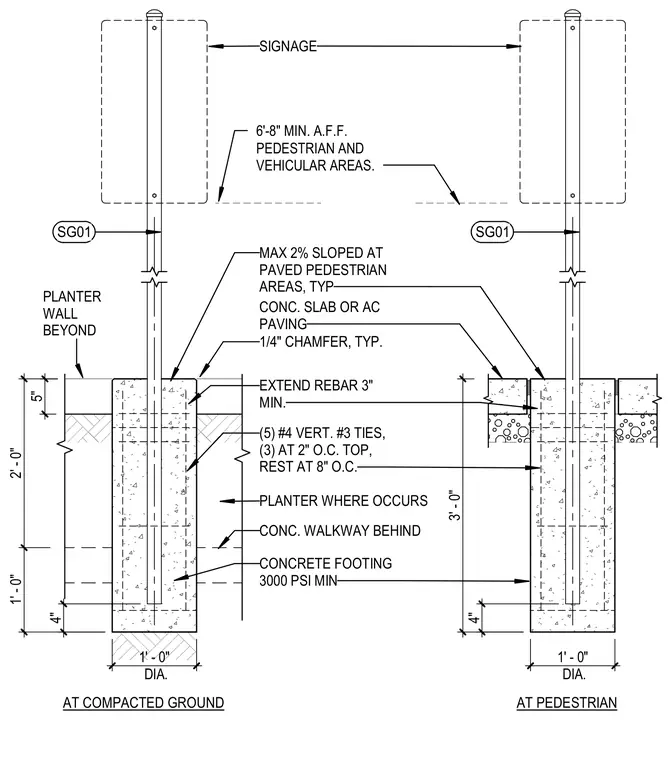

Signage Post Foundation Detail at Compacted Ground and Pedestrian Paving

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Site / Paving Reinforcing

About this detail

A signage post is anchored within a reinforced concrete footing, detailed in two conditions at compacted ground and pedestrian paving. The cylindrical concrete footing measures one foot in diameter and incorporates three thousand PSI minimum concrete with a four-inch bottom clearance. Reinforcing consists of five number four vertical rebars tied with number three ties spaced at two inches on center at the top and eight inches on center for the remainder. A signage post designated SG01 extends upward with signage positioned at a minimum of six feet eight inches above the finished floor for pedestrian and vehicular areas. Surrounding conditions feature either a four-inch concrete slab, asphalt concrete paving, or a planter wall beyond with typical quarter-inch chamfers and a maximum two percent slope at paved pedestrian areas.
