Architectural · A-T2YYB

Section Detail Coiling Door Head

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Doors Facades / Cladding Ceilings Waterproofing / Flashing Insulation Drainage Connections / Plates

Connections

HSS Connection

About this detail

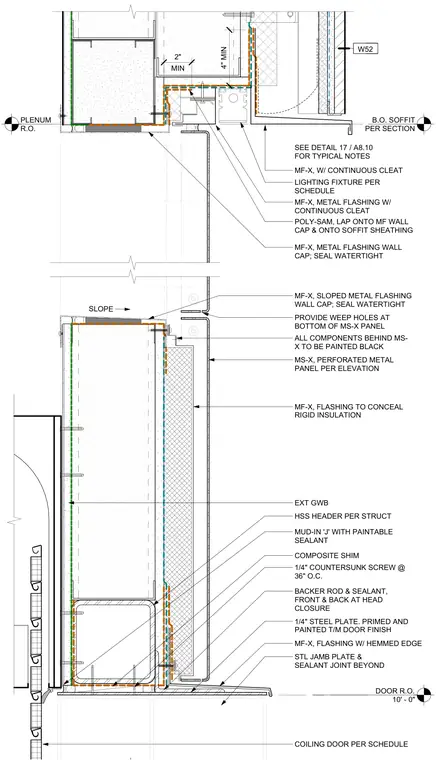

A structural hollow structural section header is anchored above a one-quarter inch steel plate primed and painted to match the door finish. A steel jamb plate with sealant joint is detailed beyond. Perforated metal panels and exterior gypsum wallboard are integrated with layered sloped metal flashing, continuous cleats, rigid insulation, and backer rod with sealant at the head closure. A lighting fixture is mounted at the soffit plenum, and weep holes are provided at the bottom of the metal panel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
