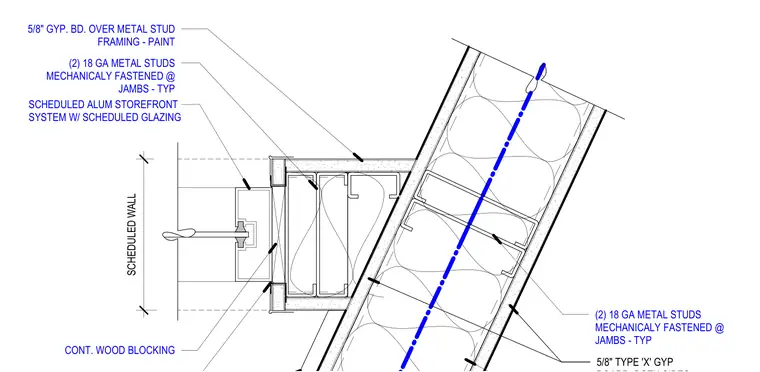

An aluminum storefront system with scheduled glazing connects to a jamb assembly featuring continuous wood blocking and two eighteen-gauge metal studs mechanically fastened together. The adjacent angled rated wall is framed with two eighteen-gauge metal studs and surfaced with five-eighths-inch Type X gypsum board on both sides finished with paint.
5/8" TYPE 'X' GYP CONT. WOOD BLOCKING SCHEDULED ALUM STOREFRONT SYSTEM W/ SCHEDULED GLAZING (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS - TYP 5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT SCHEDULED WALL (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS - TYP
