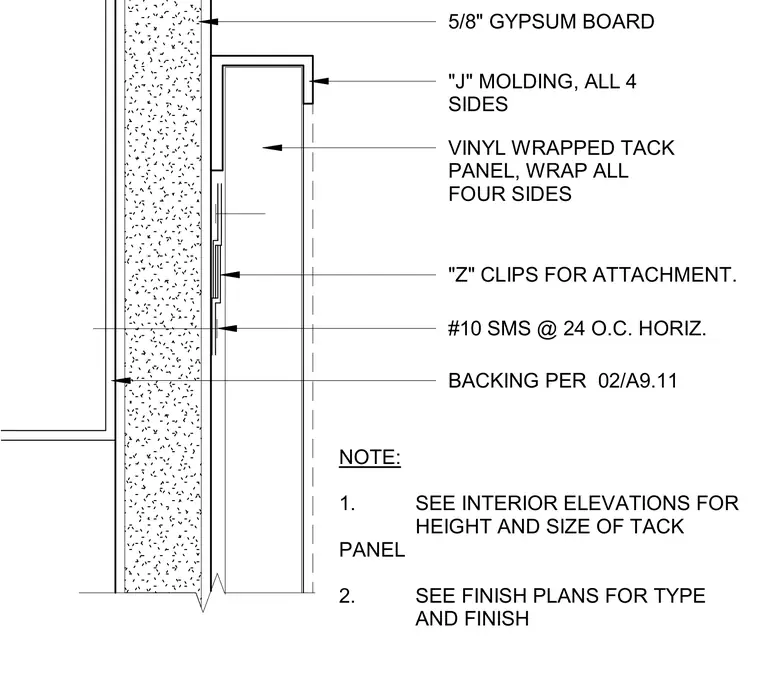

A vinyl wrapped tack panel is installed over a five-eighths-inch gypsum board substrate using Z clips for attachment. The panel edges are trimmed with J molding on all four sides, and the vinyl material is wrapped completely around all four sides. Fastening is achieved with number ten sheet metal screws spaced at twenty-four inches on center horizontally, secured into backing as detailed elsewhere. Height and size are determined by interior elevations, while type and finish are coordinated with finish plans.
5/8" GYPSUM BOARD "J" MOLDING, ALL 4 SIDES VINYL WRAPPED TACK PANEL, WRAP ALL FOUR SIDES "Z" CLIPS FOR ATTACHMENT. #10 SMS @ 24 O.C. HORIZ. BACKING PER 02/A9.11 NOTE: 1. SEE INTERIOR ELEVATIONS FOR HEIGHT AND SIZE OF TACK PANEL 2. SEE FINISH PLANS FOR TYPE AND FINISH
