Curtain Wall and Roof Intersection at Level 29 Mechanical Floor

Materials

Glass / Glazing Aluminum Metal (misc.)EIFS / Plaster / Stucco

Elements

Walls Floors / Slabs Waterproofing / Flashing

About this detail

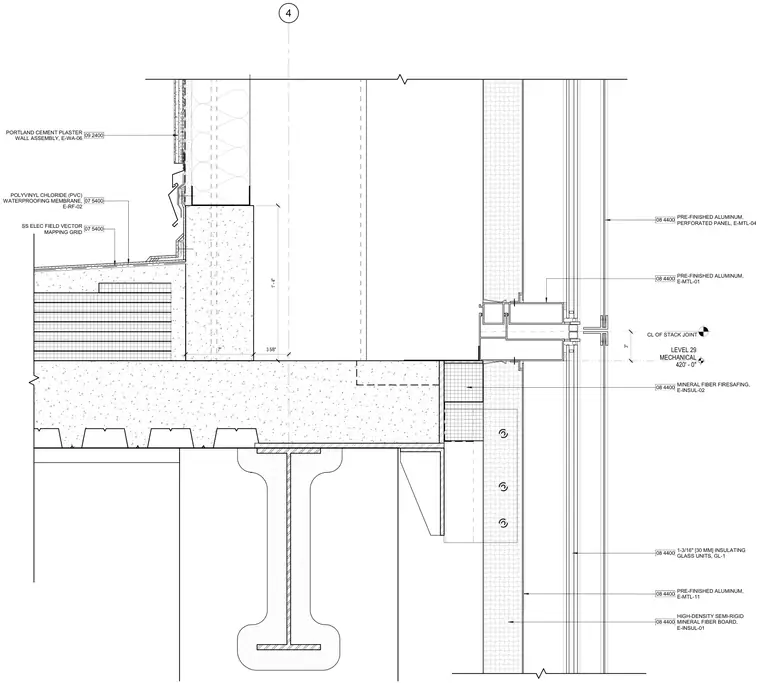

The junction between a Level 29 mechanical floor slab and an exterior curtain wall assembly. A wide-flange steel beam supports the concrete slab over metal decking, with a perimeter edge condition interfacing with the glazing system. The exterior wall incorporates 1-3/16 inch insulating glass units, pre-finished aluminum panels, high-density semi-rigid mineral fiber board insulation, and mineral fiber firesafing. At the roof level above the slab, a polyvinyl chloride waterproofing membrane is laid over a stainless steel electric field vector mapping grid, abutting a portland cement plaster wall assembly.
