A sloping cant is constructed at projections into an elevator hoistway exceeding five-eighths of an inch. A five-eighths-inch gypsum board cant is sloped at a minimum seventy-five degree angle from the vertical and secured with continuous two-inch by two-inch by twenty-gauge metal angles at the top and bottom. Where the cant length exceeds twenty-four inches, two-and-one-half-inch metal studs are provided at twenty-four inches on center behind the cant. The assembly is installed adjacent to a gypsum liner panel partition as scheduled.

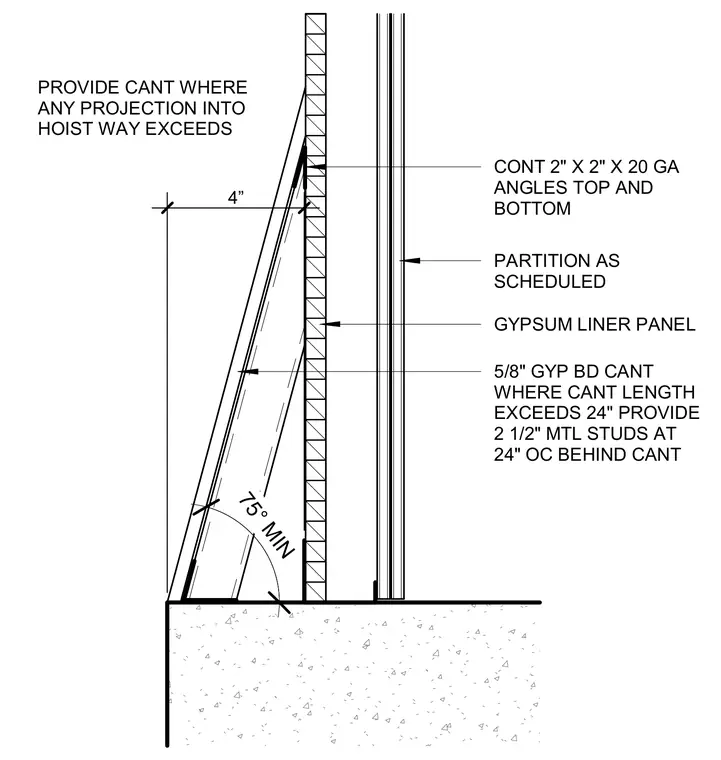

75° MIN 4” PROVIDE CANT WHERE ANY PROJECTION INTO HOIST WAY EXCEEDS 5/8" GYP BD CANT WHERE CANT LENGTH EXCEEDS 24" PROVIDE 2 1/2" MTL STUDS AT 24" OC BEHIND CANT GYPSUM LINER PANEL PARTITION AS SCHEDULED CONT 2" X 2" X 20 GA ANGLES TOP AND BOTTOM
