A protective goalpost guard assembly is constructed from 6-inch diameter Schedule 40 steel pipe filled with concrete and painted yellow. The frame features a welded header connecting the vertical pipe legs, which extend down into 3-foot deep concrete footings isolated with expansion material. The width is dimensioned as the scheduled opening minus 4 inches, providing clearance around the door opening above the finish floor.

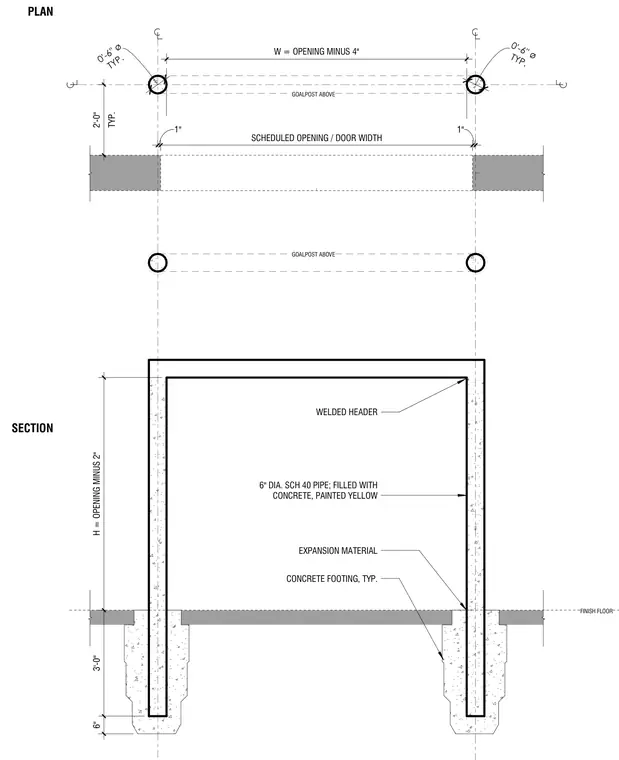

TYP. 0'-6" ø TYP. 0'-6" ø 1" SCHEDULED OPENING / DOOR WIDTH 1" W = OPENING MINUS 4" TYP. 2'-0" GOALPOST ABOVE GOALPOST ABOVE FINISH FLOOR 6" 3'-0" H = OPENING MINUS 2" 6" DIA. SCH 40 PIPE; FILLED WITH CONCRETE, PAINTED YELLOW EXPANSION MATERIAL CONCRETE FOOTING, TYP. WELDED HEADER PLAN SECTION
