Architectural · A-T26WZ

Parapet and Corner Plan Detail with Living Wall Framing

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Parapets Canopies Floors / Slabs Insulation

Connections

HSS Connection

About this detail

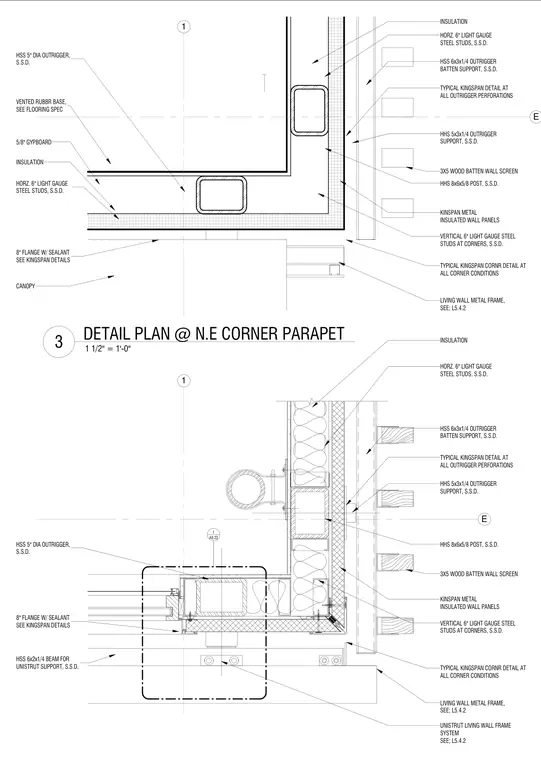

Northeast corner parapet assembly featuring a hollow structural section 8x6x5/8 vertical post and hollow structural section 5-inch diameter outriggers. The exterior wall construction incorporates Kingspan metal insulated wall panels with an 8-inch flange and sealant, backed by horizontal and vertical 6-inch light gauge steel studs and interior 5/8-inch gypsum board. A living wall system is mounted to the exterior utilizing hollow structural section 6x3x1/4 and 5x3x1/4 outrigger supports and 3x5 wood batten wall screens attached via Unistrut framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
