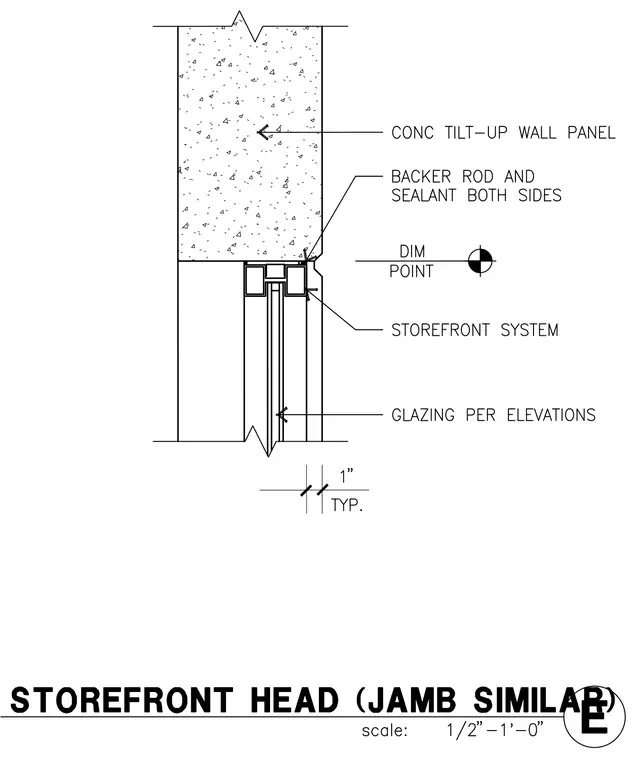

A storefront head system is set beneath a concrete tilt-up wall panel with a dimension point established at the reveal. A backer rod and sealant are applied to both sides of the joint between the concrete panel and the aluminum storefront framing. Glazing is installed within the storefront system as specified per elevations, maintaining a typical one-inch clearance.
