A typical base cabinet assembly is anchored above the finished floor at two feet ten inches above finished floor to the top of the solid surfacing countertop. The countertop rests on wood preservative-treated blocking and a plastic laminate faced drawer stop. The frameless cabinet features plastic-laminate-clad architectural cabinet doors attached with European-type frameless concealed hinges and back-mounted cabinet pulls. Adjustable shelf standards, support, and peg-type shelf rests accommodate interior shelving. The cabinet frame is elevated on wood blocking above the finished floor.

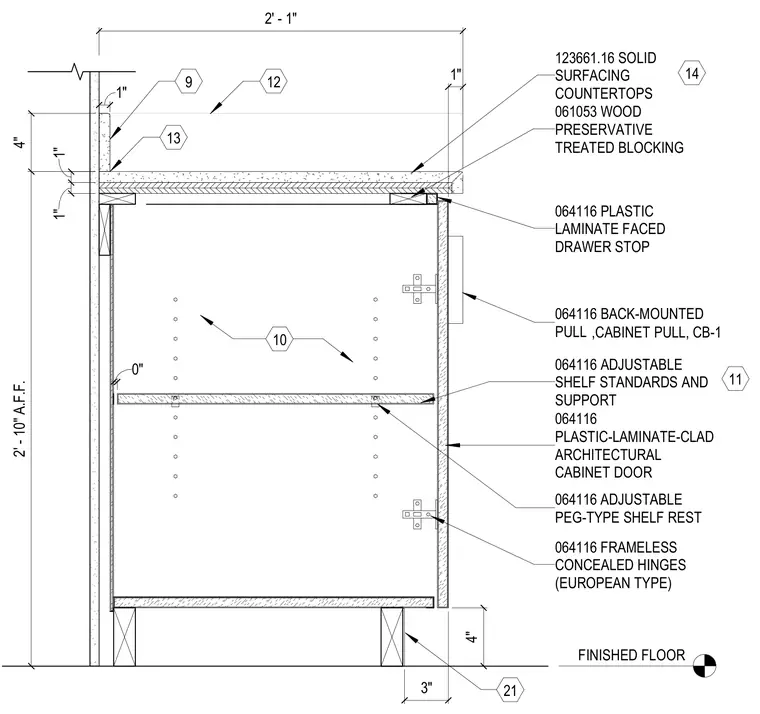

4" 2' - 10" A.F.F. ,CABINET PULL, CB-1 123661.16 SOLID SURFACING COUNTERTOPS 064116 BACK-MOUNTED PULL 064116 FRAMELESS CONCEALED HINGES (EUROPEAN TYPE) 064116 PLASTIC LAMINATE FACED DRAWER STOP 11 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DOOR 14 061053 WOOD PRESERVATIVE TREATED BLOCKING 21 0" 9 1" 13 2' - 1" 1" 1" 1" 10 12 064116 ADJUSTABLE SHELF STANDARDS AND SUPPORT 064116 ADJUSTABLE PEG-TYPE SHELF REST 3" 4" FINISHED FLOOR
