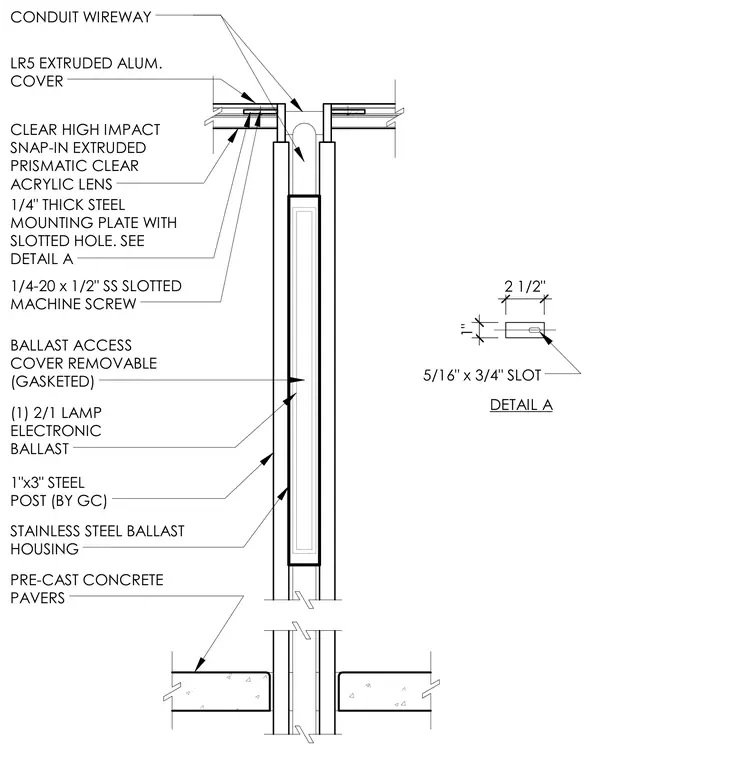

A stainless steel ballast housing contains one two-lamp electronic ballast and is framed by a one-by-three-inch steel post provided by the general contractor. An extruded aluminum cover with a clear high-impact snap-in extruded prismatic clear acrylic lens sits at the top, secured by a quarter-inch thick steel mounting plate with slotted holes referencing Detail A. The assembly is fastened using quarter-twenty by half-inch stainless steel slotted machine screws. A removable, gasketed ballast access cover allows maintenance access. Pre-cast concrete pavers flank the base of the fixture.
1"x3" STEEL POST (BY GC) (1) 2/1 LAMP ELECTRONIC BALLAST BALLAST ACCESS COVER REMOVABLE (GASKETED) STAINLESS STEEL BALLAST HOUSING LR5 EXTRUDED ALUM. COVER 1/4" THICK STEEL MOUNTING PLATE WITH SLOTTED HOLE. SEE DETAIL A 1/4-20 x 1/2" SS SLOTTED MACHINE SCREW CLEAR HIGH IMPACT SNAP-IN EXTRUDED PRISMATIC CLEAR ACRYLIC LENS CONDUIT WIREWAY 2 1/2" 1" DETAIL A 5/16" x 3/4" SLOT PRE-CAST CONCRETE PAVERS
