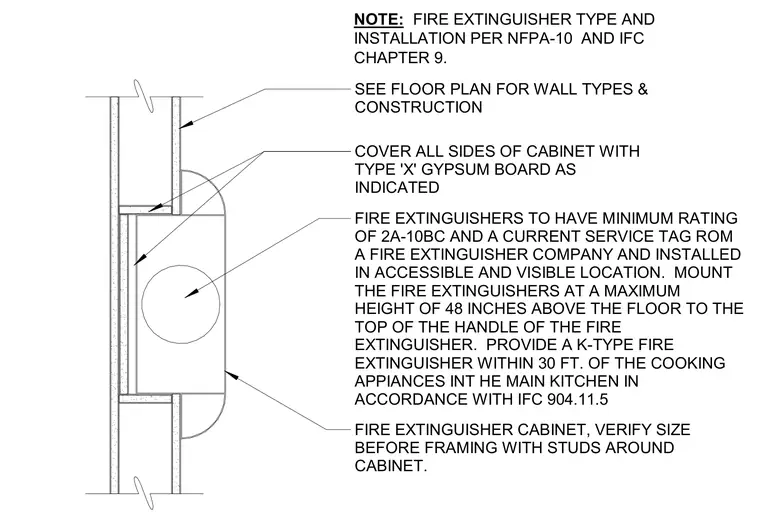

A fire extinguisher cabinet is recessed into a framed wall assembly with surrounding studs sized per floor plan requirements. All sides of the cabinet are covered with Type X gypsum board as indicated. The fire extinguisher requires a minimum rating of 2A-10BC with a current service tag from a certified provider, and must be installed in an accessible, visible location. The top of the fire extinguisher handle is mounted at a maximum height of 48 inches above the finished floor. A K-type fire extinguisher is provided within 30 feet of cooking appliances in the main kitchen in accordance with IFC 904.11.5.
SEE FLOOR PLAN FOR WALL TYPES & CONSTRUCTION FIRE EXTINGUISHER CABINET, VERIFY SIZE BEFORE FRAMING WITH STUDS AROUND CABINET. COVER ALL SIDES OF CABINET WITH TYPE 'X' GYPSUM BOARD AS INDICATED NOTE: FIRE EXTINGUISHER TYPE AND INSTALLATION PER NFPA-10 AND IFC CHAPTER 9. FIRE EXTINGUISHERS TO HAVE MINIMUM RATING OF 2A-10BC AND A CURRENT SERVICE TAG ROM A FIRE EXTINGUISHER COMPANY AND INSTALLED IN ACCESSIBLE AND VISIBLE LOCATION. MOUNT THE FIRE EXTINGUISHERS AT A MAXIMUM HEIGHT OF 48 INCHES ABOVE THE FLOOR TO THE TOP OF THE HANDLE OF THE FIRE EXTINGUISHER. PROVIDE A K-TYPE FIRE EXTINGUISHER WITHIN 30 FT. OF THE COOKING APPIANCES INT HE MAIN KITCHEN IN ACCORDANCE WITH IFC 904.11.5
