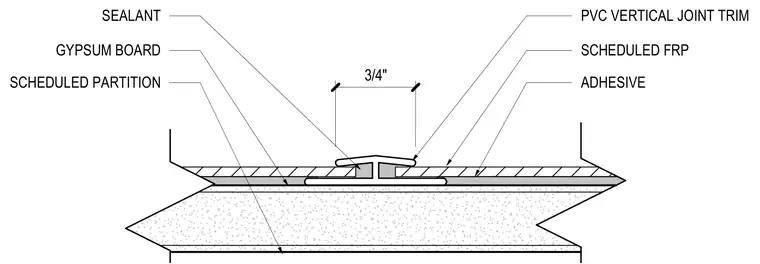

A PVC vertical joint trim connects adjacent panels of scheduled fiber-reinforced plastic over gypsum board. Adhesive secures the fiber-reinforced plastic to the gypsum board backing of the scheduled partition. Sealant fills the joint adjacent to the PVC vertical joint trim, maintaining a three-quarter-inch spacing.
SCHEDULED PARTITION PVC VERTICAL JOINT TRIM SCHEDULED FRP ADHESIVE SEALANT GYPSUM BOARD 3/4"
