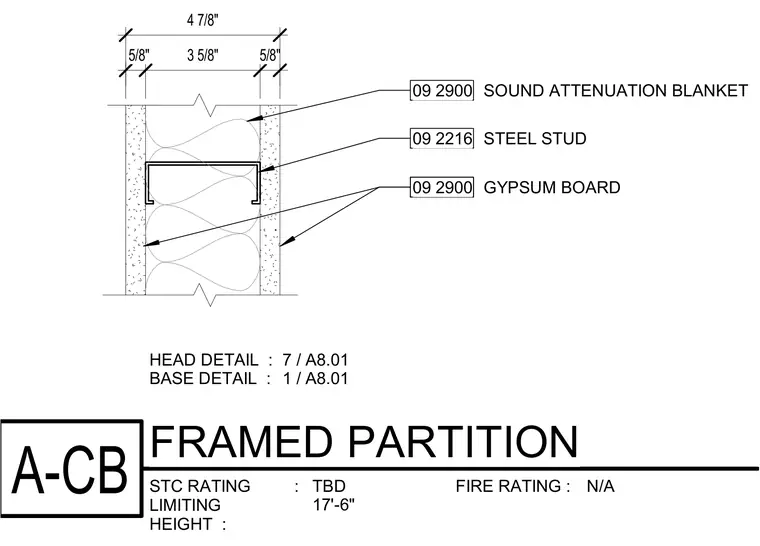

A standard framed partition wall assembly with a total thickness of four and seven-eighths inches. The core is constructed with three-and-five-eighths-inch steel studs spaced with a sound attenuation blanket installed within the cavity. Each side of the framing is finished with a five-eighths-inch layer of gypsum board. The assembly achieves a limiting height of seventeen feet and six inches.
5/8" 3 5/8" 5/8" 09 2216 STEEL STUD 4 7/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : A-CB FRAMED PARTITION TBD N/A 17'-6" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD 09 2900 SOUND ATTENUATION BLANKET 09 2900 GYPSUM BOARD
