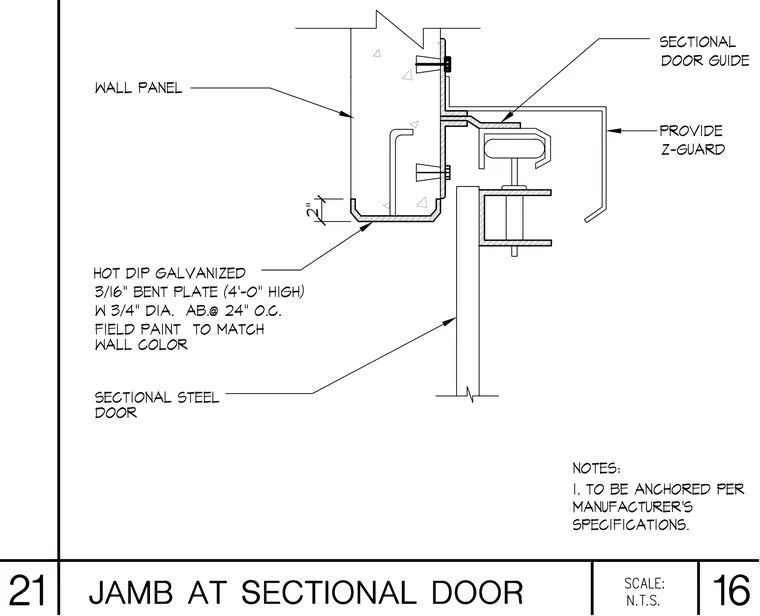

A sectional steel door jamb meets a wall panel incorporating a hot-dip galvanized three-sixteenths-inch bent plate four feet high secured with three-quarter-inch-diameter anchor bolts at twenty-four inches on center and field-painted to match the wall color. A sectional door guide and a z-guard are provided at the opening. Fasteners anchor the assembly to the wall panel, and the door is installed per manufacturer specifications.
