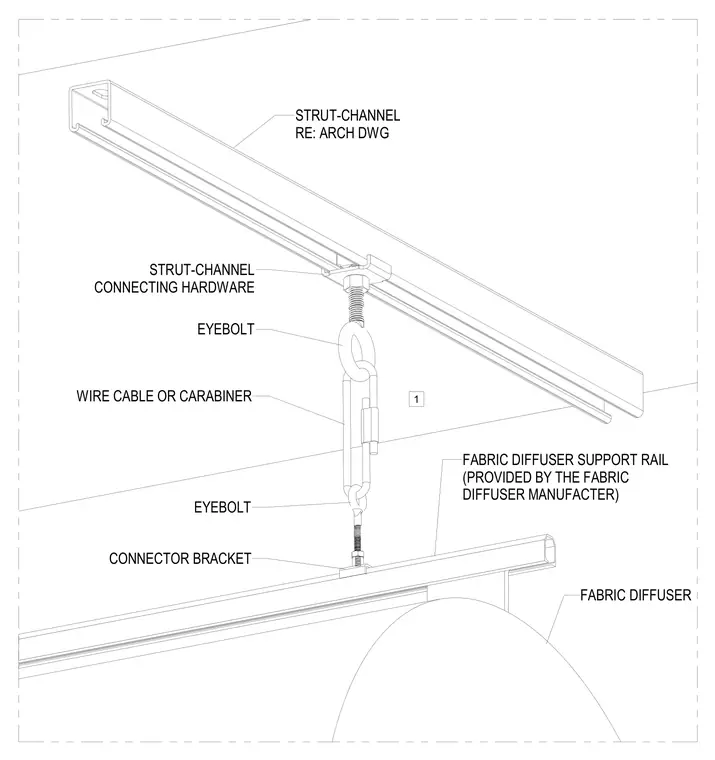

A strut-channel mounts overhead and connects via strut-channel connecting hardware to an upper eyebolt. A wire cable or carabiner links the upper eyebolt to a lower eyebolt. The lower eyebolt attaches through a connector bracket to the fabric diffuser support rail, which is provided by the fabric diffuser manufacturer and suspends the fabric diffuser.
STRUT-CHANNEL RE: ARCH DWG FABRIC DIFFUSER FABRIC DIFFUSER SUPPORT RAIL (PROVIDED BY THE FABRIC DIFFUSER MANUFACTER) CONNECTOR BRACKET EYEBOLT EYEBOLT WIRE CABLE OR CARABINER STRUT-CHANNEL CONNECTING HARDWARE 1
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
