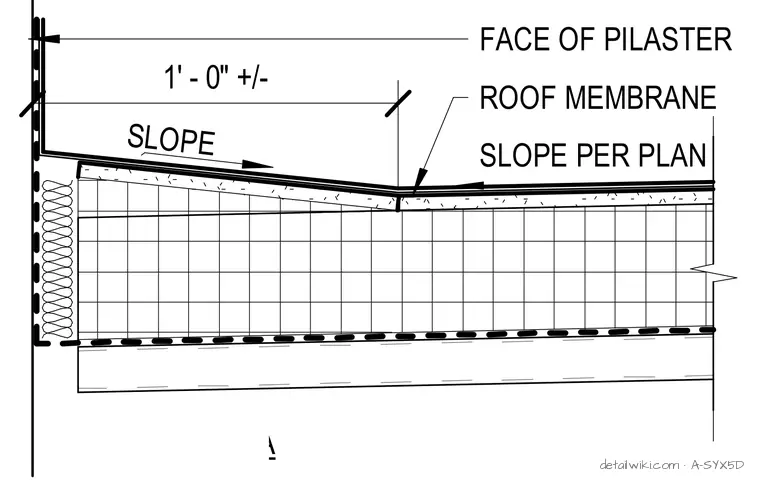

The roof membrane slopes toward a drainage point at the face of the pilaster. The slope is determined per the project plan, with a transition dimensioned at approximately one foot. The assembly includes the roof membrane layer over the structural roof deck and insulation, terminating at the vertical face of the pilaster.
Text on the drawing
SLOPE FACE OF PILASTER ROOF MEMBRANE SLOPE PER PLAN SECTION A-A 1' - 0" +/-
