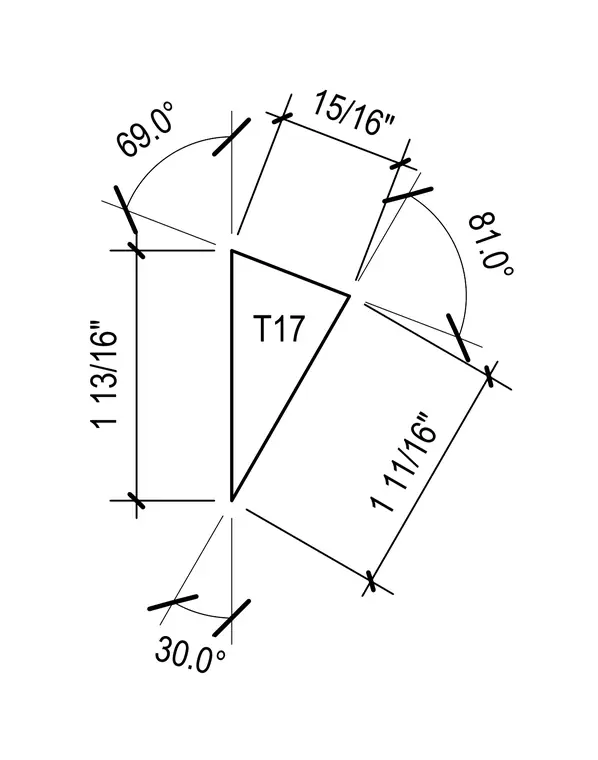

Small lowline tile type T17 with precise dimensions and angles. The triangular tile shape is defined by linear edge dimensions of fifteen-sixteenths of an inch, one and eleven-sixteenths of an inch, and one and thirteen-sixteenths of an inch. Internal and external corner angles are specified at thirty degrees, sixty-nine degrees, and eighty-one degrees.
