Tactile exit stair sign featuring raised sans-serif uppercase characters and corresponding grade two braille compliant with local accessibility standards. The characters are raised one-thirty-second of an inch with a character height corresponding to accessibility requirements. Both the characters and the background feature a non-glare finish designed to contrast with each other and remain distinctly different from the color and contrast of the supporting wall. Standard coloring consists of white text on a blue background unless otherwise approved.

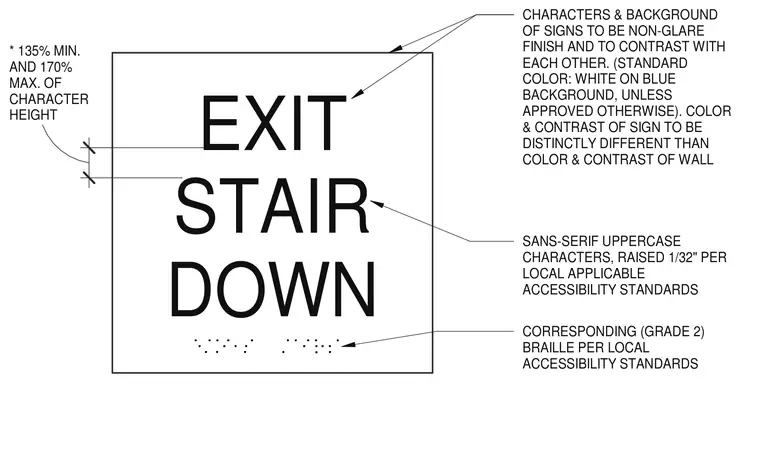

EXIT STAIR DOWN * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL
