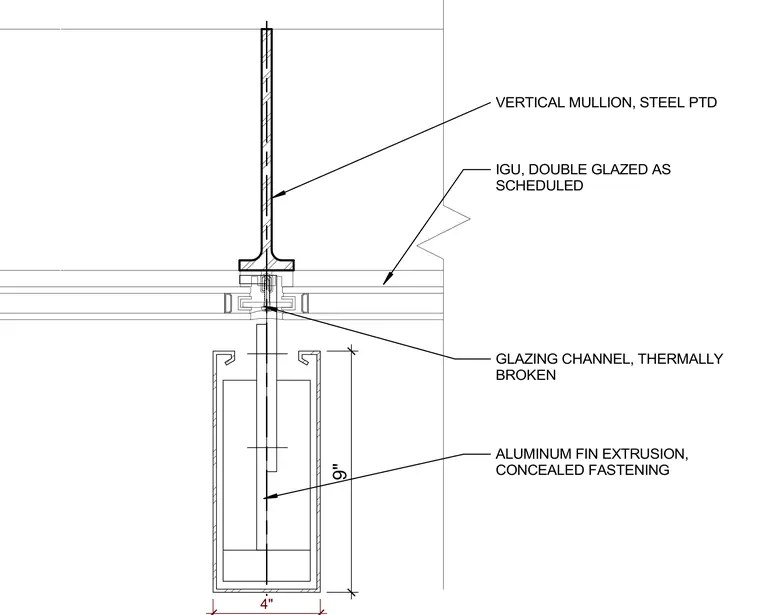

A painted steel vertical mullion aligns with a double-glazed insulated glass unit scheduled for the opening. The glass is secured within a thermally broken aluminum glazing channel. An aluminum fin extrusion with concealed fastenings anchors the assembly with a 9-inch depth and 4-inch width profile.
VERTICAL MULLION, STEEL PTD IGU, DOUBLE GLAZED AS SCHEDULED GLAZING CHANNEL, THERMALLY BROKEN ALUMINUM FIN EXTRUSION, CONCEALED FASTENING 9" 4"
