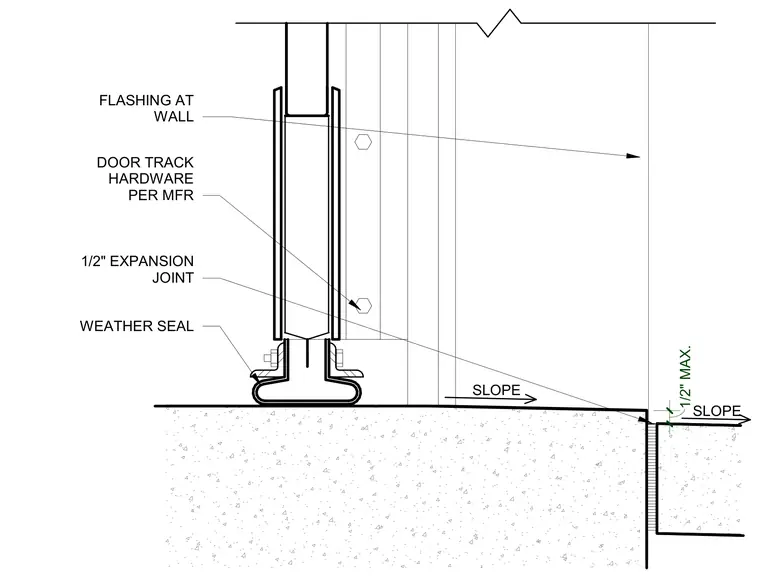

The rolling door sill assembly features wall flashing and door track hardware installed per the manufacturer's specifications. A half-inch expansion joint is integrated near the base alongside a weather seal at the door threshold. The adjacent concrete slab slopes away from the opening with a half-inch maximum slope.
FLASHING AT WALL DOOR TRACK HARDWARE PER MFR WEATHER SEAL 1/2" EXPANSION JOINT SLOPE SLOPE 1/2" MAX.
