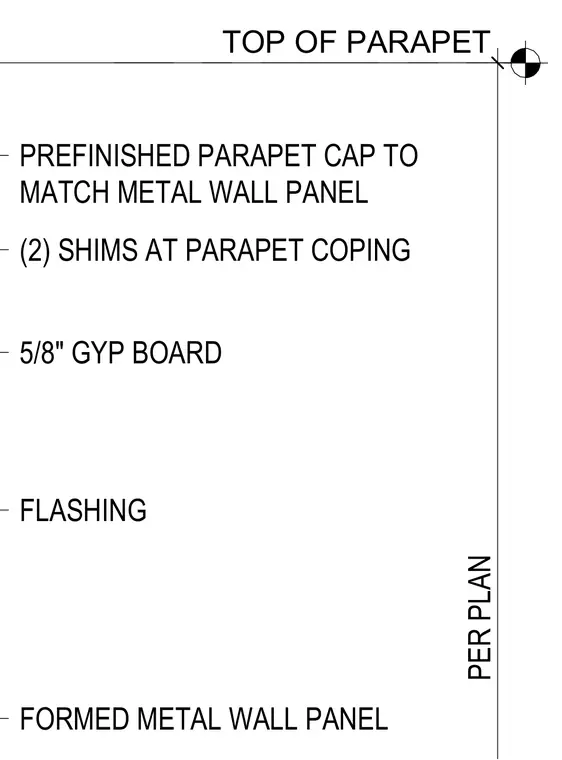

A prefinished metal parapet cap matches the exterior metal wall panels at the top of the parapet. Two shims are provided at the parapet coping per plan. A layer of five-eighths-inch gypsum board backs the assembly above the flashing and formed metal wall panel.
FORMED METAL WALL PANEL TOP OF PARAPET PREFINISHED PARAPET CAP TO MATCH METAL WALL PANEL 5/8" GYP BOARD FLASHING (2) SHIMS AT PARAPET COPING PER PLAN
