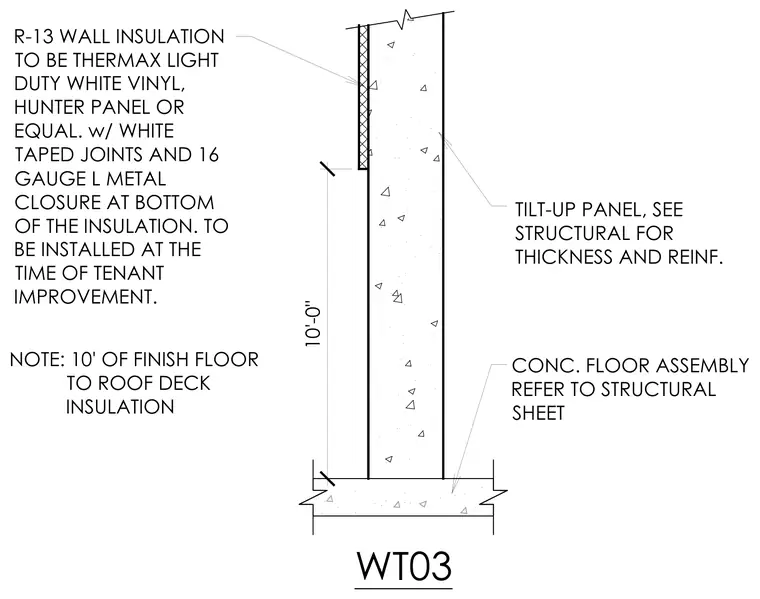

This wall assembly consists of a tilt-up concrete panel supported by a concrete floor slab, with a ten-foot clear height between the finish floor and roof deck. R-13 wall insulation using Thermax light-duty white vinyl or equal panels is applied to the interior face with white taped joints. A 16-gauge metal closure angle supports the bottom of the insulation layer. The concrete panel thickness, reinforcement, and floor assembly details are coordinated with the structural drawings.
TILT-UP PANEL, SEE STRUCTURAL FOR THICKNESS AND REINF. WT03 R-13 WALL INSULATION TO BE THERMAX LIGHT DUTY WHITE VINYL, HUNTER PANEL OR EQUAL. w/ WHITE TAPED JOINTS AND 16 GAUGE L METAL CLOSURE AT BOTTOM OF THE INSULATION. TO BE INSTALLED AT THE TIME OF TENANT IMPROVEMENT. NOTE: 10' OF FINISH FLOOR TO ROOF DECK INSULATION 10'-0" CONC. FLOOR ASSEMBLY REFER TO STRUCTURAL SHEET
