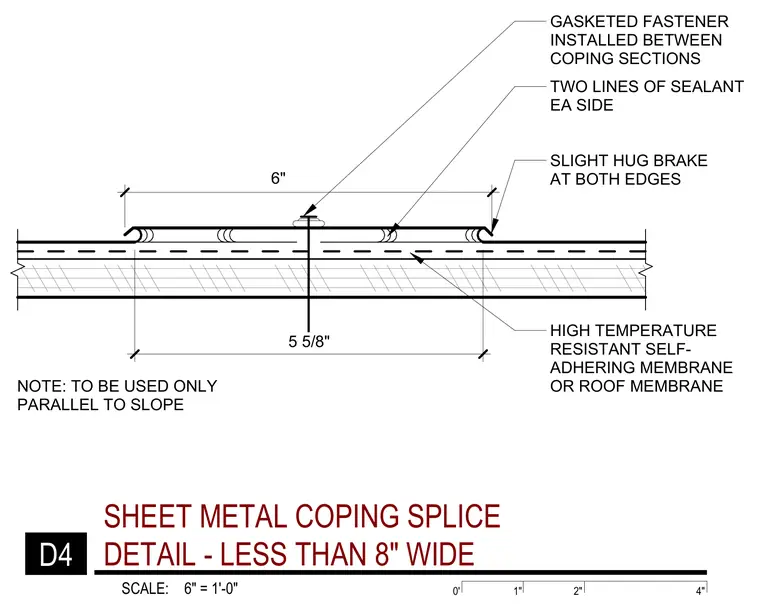

The coping splice features two lines of sealant on each side of the joint and a slight hug brake at both edges of the metal. A high temperature resistant self-adhering membrane or roof membrane underlies the metal coping sections. A gasketed fastener is installed between the coping sections. The detail is restricted for use only parallel to the slope.
5 5/8" NOTE: TO BE USED ONLY PARALLEL TO SLOPE 6" TWO LINES OF SEALANT EA SIDE SLIGHT HUG BRAKE AT BOTH EDGES HIGH TEMPERATURE RESISTANT SELF- ADHERING MEMBRANE OR ROOF MEMBRANE GASKETED FASTENER INSTALLED BETWEEN COPING SECTIONS 0' 1" 2" 4" SCALE: 6" = 1'-0" D4 SHEET METAL COPING SPLICE DETAIL - LESS THAN 8" WIDE
