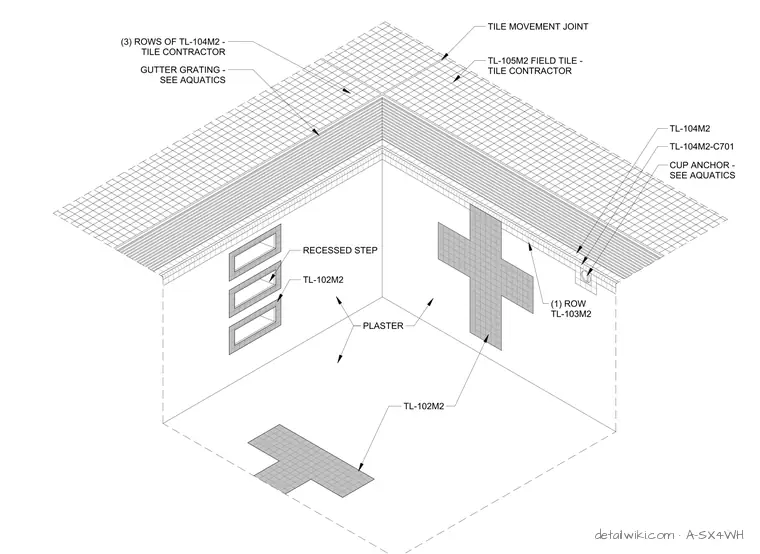

This isometric assembly shows the tile finish transition at a swimming pool corner, featuring a perimeter gutter grating and a tile movement joint. The pool wall and floor surfaces are finished with TL-102M2 plaster, with specific tile patterns including a single row of TL-103M2 and field tiles designated as TL-105M2. The gutter edge incorporates three rows of TL-104M2 tiles, with gutter grating and cup anchors installed per the aquatics consultant's specifications. A recessed step feature is integrated into the wall assembly using TL-102M2 tile finishes.
