Roof Penetration Flashing

Materials

Elements

Roofs Waterproofing / Flashing Insulation Roof / Floor Openings

About this detail

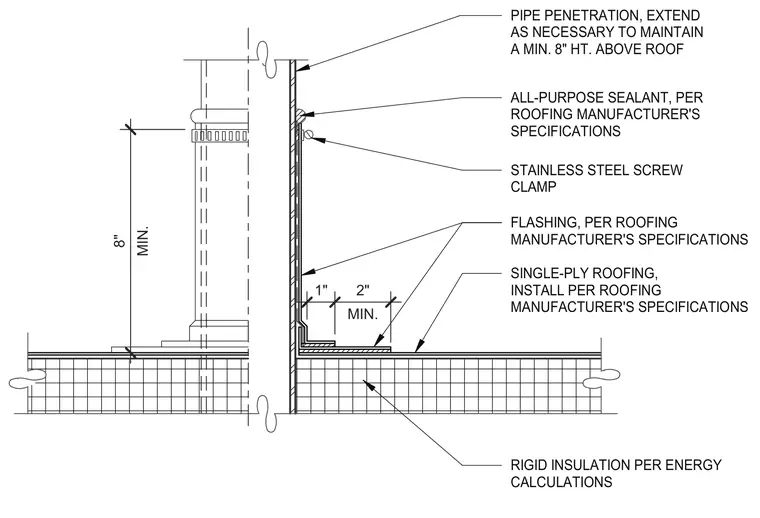

A pipe penetration extends through the roof assembly, maintaining a minimum eight-inch height above the finished roof surface. Single-ply roofing is installed over rigid insulation, turning up the vertical penetration. Flashing is installed per the roofing manufacturer's specifications, secured at the top with a stainless steel screw clamp and sealed with all-purpose sealant.
