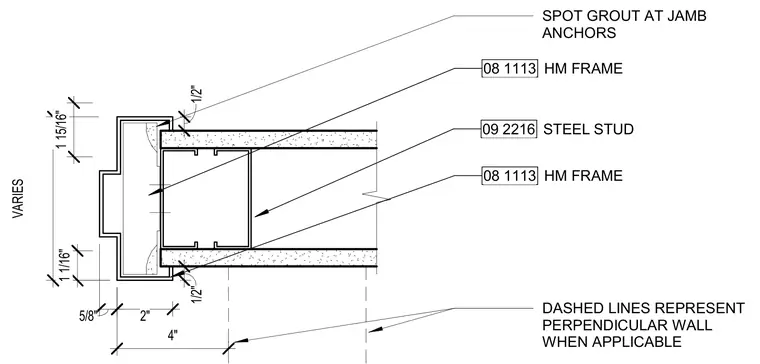

A hollow metal frame connects to a steel stud wall assembly with spot grout placed at the jamb anchors. The hollow metal frame profile receives gypsum board returns terminating with a half-inch clearance. Dashed lines indicate the position of a perpendicular wall where applicable.
VARIES 1 1/16" 1/2" 1/2" 2" 5/8" 1 15/16" 4" DASHED LINES REPRESENT PERPENDICULAR WALL WHEN APPLICABLE 08 1113 HM FRAME SPOT GROUT AT JAMB ANCHORS 09 2216 STEEL STUD 08 1113 HM FRAME
